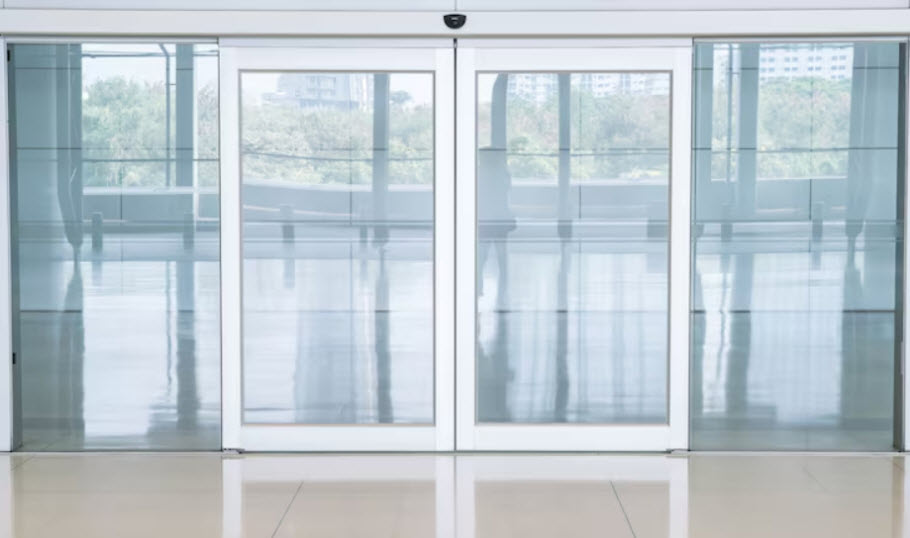

In downtown Vancouver’s competitive retail landscape, first impressions happen at the front door. For a high-volume flagship clothing boutique on Robson Street, the entrance was failing to deliver the smooth, welcoming experience customers expected.
Over several rainy autumn weeks, the store’s bi-parting automatic sliding doors began grinding loudly, shuddering mid-glide, and sticking open. Cold drafts rushed directly into the showroom, forcing staff to adjust the thermostat constantly while shoppers complained about accessibility delays.
When quick band-aid fixes were no longer holding, the building manager turned to Knock Knock Doors Repair for a permanent solution. Here is a step-by-step look at how a targeted automatic door replacement in Vancouver restored safety, energy efficiency, and modern style to this high-traffic storefront.
The Initial Scenario: A Struggling Downtown Entrance
The store operates in one of Vancouver’s busiest pedestrian corridors, seeing over 3,000 visitors daily. The existing glass sliding door system was installed over 14 years ago and was struggling under the sheer volume of daily cycles.
The breakdown was creating three major operational headaches:
• Severe Thermal Loss: The doors frequently failed to close completely, letting cold coastal air flood the sales floor and sending winter heating bills soaring.
• Constant Sidewalk Ghosting: Outdated single-zone motion sensors triggered whenever pedestrians walked past on the sidewalk – even if they had no intention of entering – keeping the doors open 30% longer than necessary.
• Aesthetic & Security Risks: The grinding noise gave the luxury store an unmaintained feel, and occasional door jams at closing time required security guards to remain on-site until manual overrides engaged.
The Technical Diagnosis
When our senior technicians conducted an on-site mechanical and electrical audit, the root causes became clear:
1. Motor & Gearbox Fatigue: The original brush-style motor had reached the end of its functional lifecycle, losing the torque needed to move heavy double-pane glass panels smoothly.
2. Deteriorated Roller Tracks: Years of trapped road grit and rain moisture had pitted the internal aluminum tracks, causing the steel roller wheels to drag and jump.
3. Obsolete Motion Detection: The microwave sensors lacked modern presence-detection software, failing to distinguish between passing sidewalk traffic and approaching shoppers.
Because replacement parts for the 14-year-old motor drive had been discontinued by the manufacturer, continuing to patch individual components was a dead end. A complete overhead operator replacement was the only reliable path forward.
The Solution: A Step-by-Step Upgrade Process
To prevent losing retail revenue, our team executed a seamless overnight replacement, ensuring zero downtime during regular business hours.
Phase 1: Site Containment & Safe Dismantling
After store closing, technicians secured the entryway, installed temporary weather barricades, and safely unhooked the heavy tempered glass door panels. The obsolete overhead header box, wiring harness, and worn track assemblies were completely removed.
Phase 2: Installing the High-Efficiency Operator
We mounted a commercial-grade, ultra-quiet brushless DC motor operator inside the existing architectural transoms. Brushless motors deliver higher torque with 40% less energy consumption, handling heavy daily cycle counts effortlessly without overheating.
Phase 3: Precision Smart Sensor Calibration
We installed dual-technology smart sensors featuring microwave motion detection and active infrared presence monitoring. The sensors were calibrated specifically for Vancouver’s street layout, adjusting the detection field to ignore parallel sidewalk traffic while instantly responding to approaching customers.
Phase 4: Safety Compliance & Final Testing
The door panels were rehung on heavy-duty nylon-wheeled carriages for whisper-quiet glide. Our certified technicians conducted full safety testing to meet ANSI/BHMA A156.10 standards, verifying automatic safety reversing, hold-open timing, and emergency battery breakout function during simulated power outages.
The Tangible Results
By morning opening at 10:00 AM, the boutique welcomed shoppers through a pristine, silent, and responsive entrance.
The measurable improvements were immediate:
• 85% Reduction in Drafts: Tight perimeter weather seals and precise door closure eliminated cold showroom drafts.
• Zero Sidewalk “Ghosting”: Smart sensor mapping stopped false opens from passing foot traffic, preserving indoor climate control.
• Whisper-Quiet Operation: Noise levels dropped from an abrasive grinding sound to a smooth, silent glide.
• Total Accessibility: Full compliance with City of Vancouver accessibility standards ensured effortless entry for strollers, wheelchairs, and mobility aids.
Key Takeaways for Vancouver Property Managers
If your commercial entrance is more than 10 years old or showing signs of mechanical strain, waiting for a complete breakdown can cost you thousands in lost retail traffic and emergency after-hours service fees. Modern automatic door replacements deliver immediate paybacks in energy savings, quiet operation, and overall property value.
